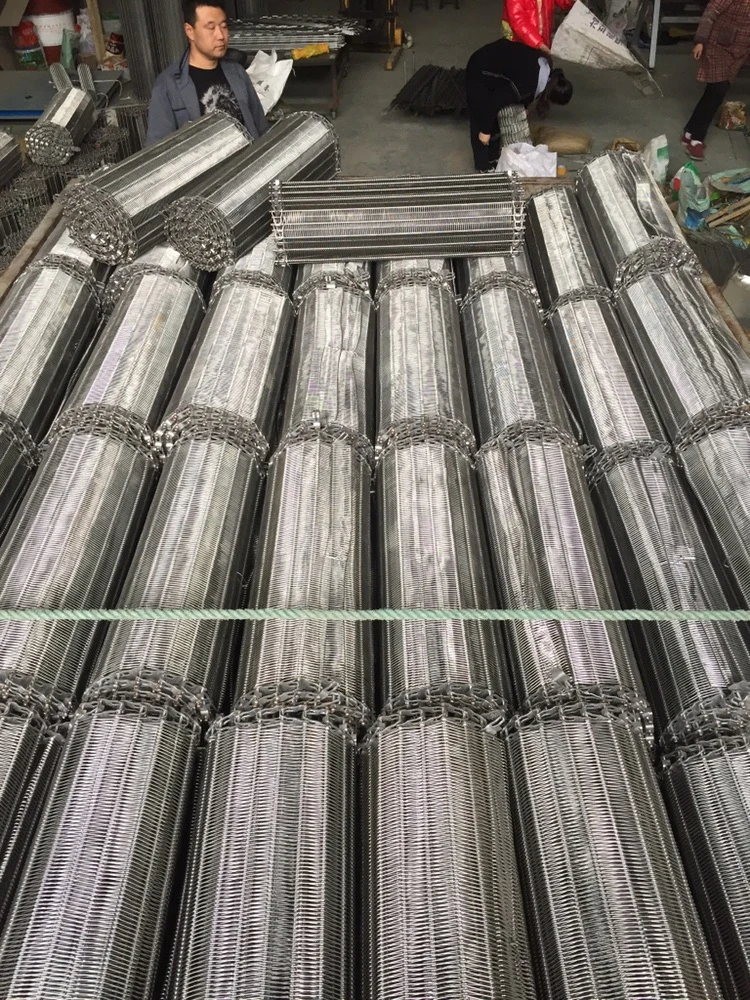

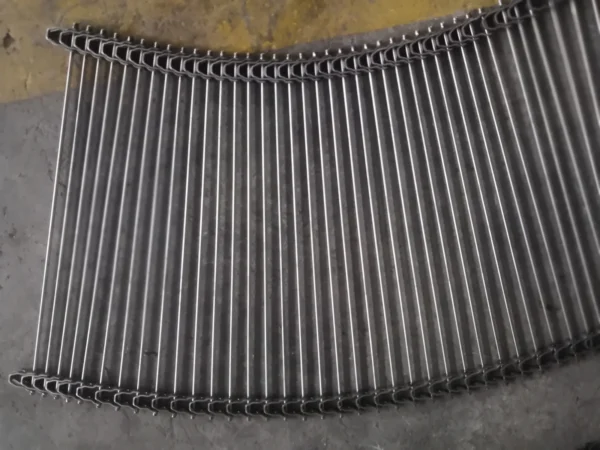

Spiral Mesh Belt
Spiral mesh belts are intended for conveying layouts that require turning capability and airflow through the belt. Belt width, support rods and side-link configuration are selected to match the equipment.
Made to your specification
Material, dimensions and edge arrangements are confirmed for your application. Share the current part or a drawing for review.
Product overview
Spiral mesh belts are intended for conveying layouts that require turning capability and airflow through the belt. Belt width, support rods and side-link configuration are selected to match the equipment.
Specifications
| Material | Stainless steel SS304 SS316 |
|---|---|
| Chain pitch (mm) | 19.05 25.4 27.4 30 30.05 31.75 38.1 50.8 |
| Collapsing link height (mm) | 24 26 38.1 |
| Collapsing link thickness (mm) | 2 2.5 2.7 3.0 |
| Support rod diameter (mm) | 5 6 |
| Wire diameter (mm) | 1.0 1.2 1.4 1.5 1.6 1.7 1.8 2.0 |
| Belt width (mm) | 200-1500 |
Available combinations depend on the belt or chain configuration. Confirm the material, dimensions, load and operating temperature before ordering.
