Short Pitch Roller Chain 06CSS
06CSS is a short-pitch roller chain listed in the Qinglin product catalogue. Check pitch, roller diameter, internal width and pin dimensions against the sprocket and installation requirements. Material and operating load must be confirmed for the application.
Made to your specification
Material, dimensions and edge arrangements are confirmed for your application. Share the current part or a drawing for review.
Product overview
06CSS is a short-pitch roller chain listed in the Qinglin product catalogue. Check pitch, roller diameter, internal width and pin dimensions against the sprocket and installation requirements. Material and operating load must be confirmed for the application.
Specifications
| Material | carbon Stainless steel SS201 SS304 SS316 |
|---|---|
| Pitch (mm) | 9.525 |
| Roller diameter (mm) | 5.08 |
| Width between inner plates (mm) | 4.77 |
| Pin diameter (mm) | 3.6 |
| Pin length (mm) | 12.4-13.17 |
| Inner plate depth (mm) | 9 |
| Plate thickness (mm) | 1.36 |
Available combinations depend on the belt or chain configuration. Confirm the material, dimensions, load and operating temperature before ordering.

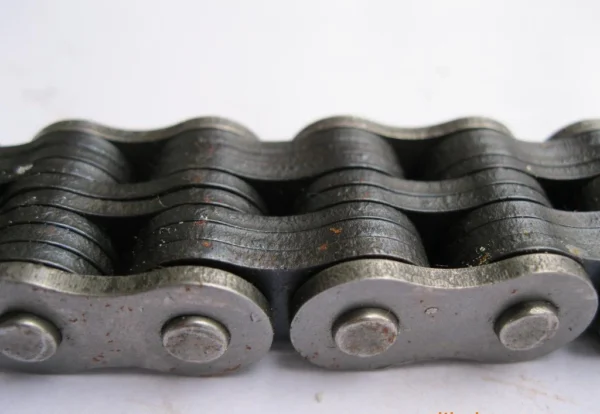

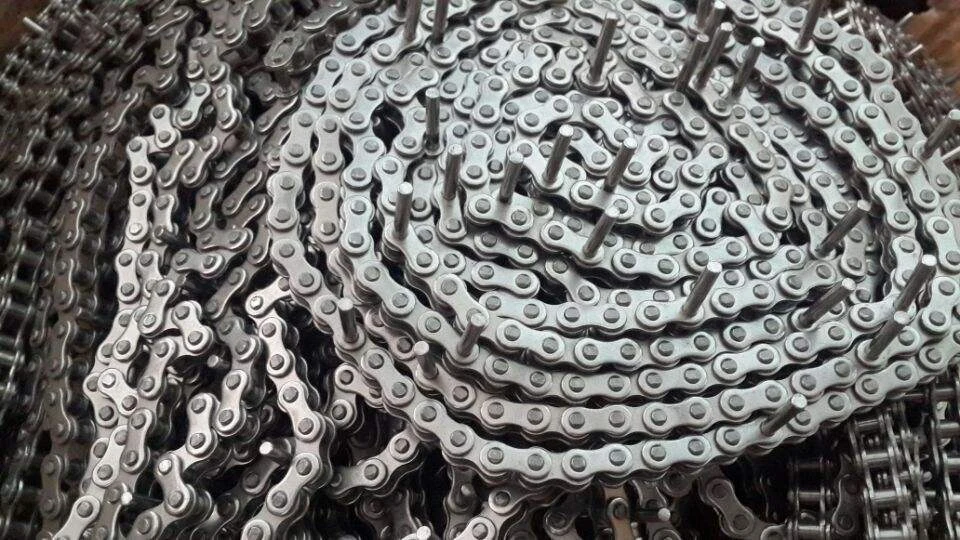

Images show representative product construction. Original factory photographs are included in the gallery. Confirm the selected model and dimensions against the specification.
