CONVEYOR COMPONENTS & SYSTEMS

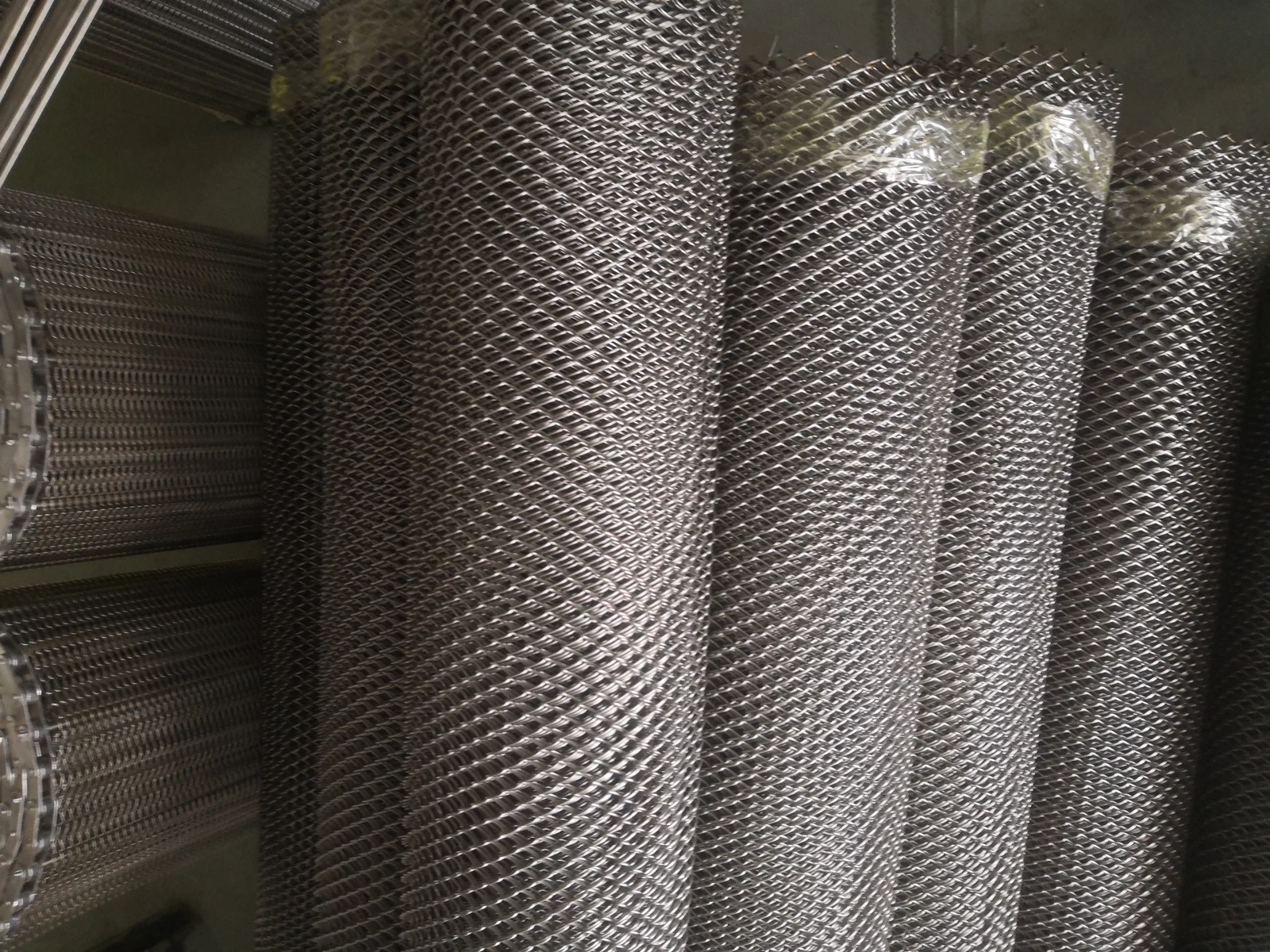

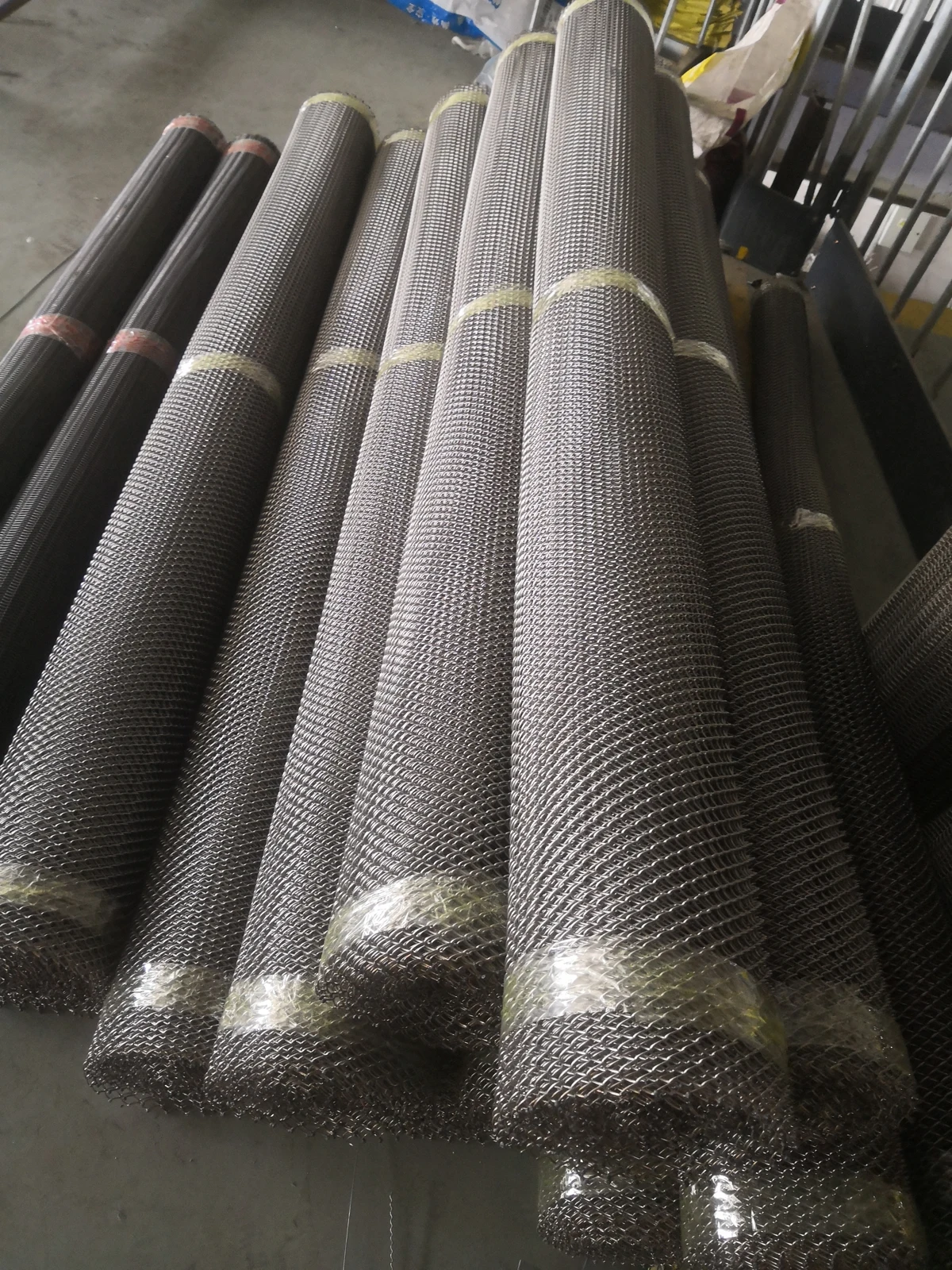

Rhombus Mesh Belt
Rhombus mesh belts use a repeating diamond-shaped weave. The open structure supports airflow and access for cleaning. Material and dimensions are selected for the conveying application.
Made to your specification
Material, dimensions and edge arrangements are confirmed for your application. Share the current part or a drawing for review.
Product overview
Rhombus mesh belts use a repeating diamond-shaped weave. The open structure supports airflow and access for cleaning. Material and dimensions are selected for the conveying application.
Specifications
| Material | Galvanized carbon Stainless steel SS201 SS304 SS316 |
|---|---|
| Wire diameter (mm) | 1.2 1.4 1.5 1.6 1.8 2 2.5 3 4 |
| Spiral pitch (mm) | 6 to 50 |
| Rod pitch (mm) | 5-50 |
| Belt width (mm) | 100-5000 |
| Rod diameter (mm) | 4 to 16 |
Available combinations depend on the belt or chain configuration. Confirm the material, dimensions, load and operating temperature before ordering.
Request a quotation
Send your drawing or sample details, quantity and required delivery date to [email protected], or call +86 18223208010.
