CONVEYOR COMPONENTS & SYSTEMS
Chain Plate Belt

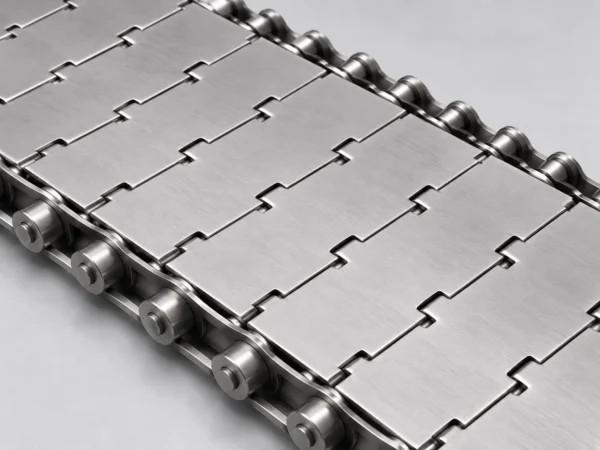

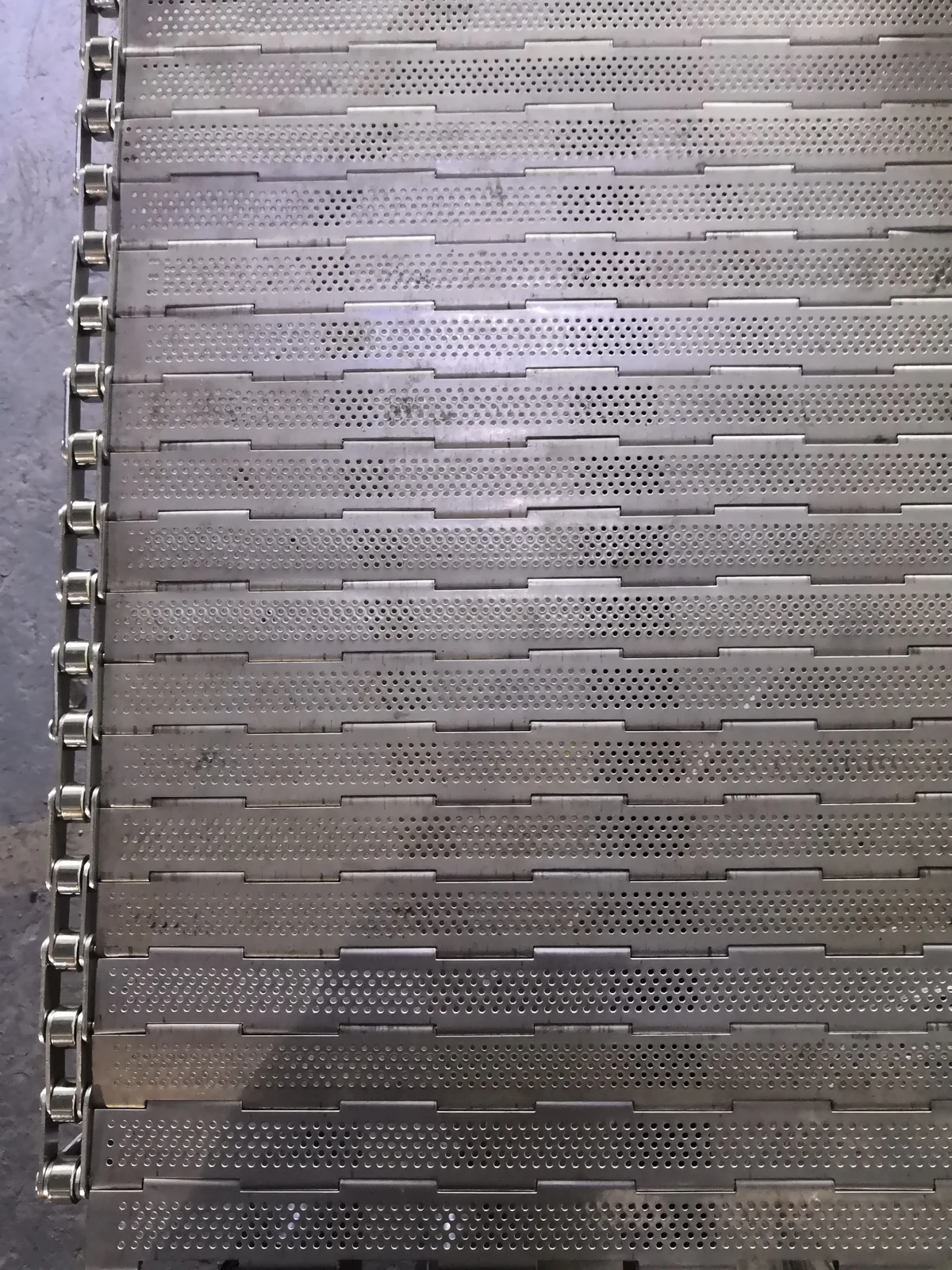

Hinged metal plates create a continuous carrying surface for medium and heavy-duty conveying. Solid and perforated plate options, side guards and transverse flights can be discussed for the application.
Made to your specification
Material, dimensions and edge arrangements are confirmed for your application. Share the current part or a drawing for review.
Product overview
Hinged metal plates create a continuous carrying surface for medium and heavy-duty conveying. Solid and perforated plate options, side guards and transverse flights can be discussed for the application.
Specifications
| Material | carbon steel,SS201 SS304 SS316 |
|---|---|
| Chain pitch (mm) | 12.7,15.875,19.05,25.4,31.75, 38.1,50.8,63.5,76.2,101.6 |
| Support rod diameter (mm) | 4mm to 16mm |
| Plate thickness (mm) | 0.8 1.0 1.2 1.5 2 2.54 3 4 5 6 |
| Belt width (mm) | 200-4000 |
Available combinations depend on the belt or chain configuration. Confirm the material, dimensions, load and operating temperature before ordering.

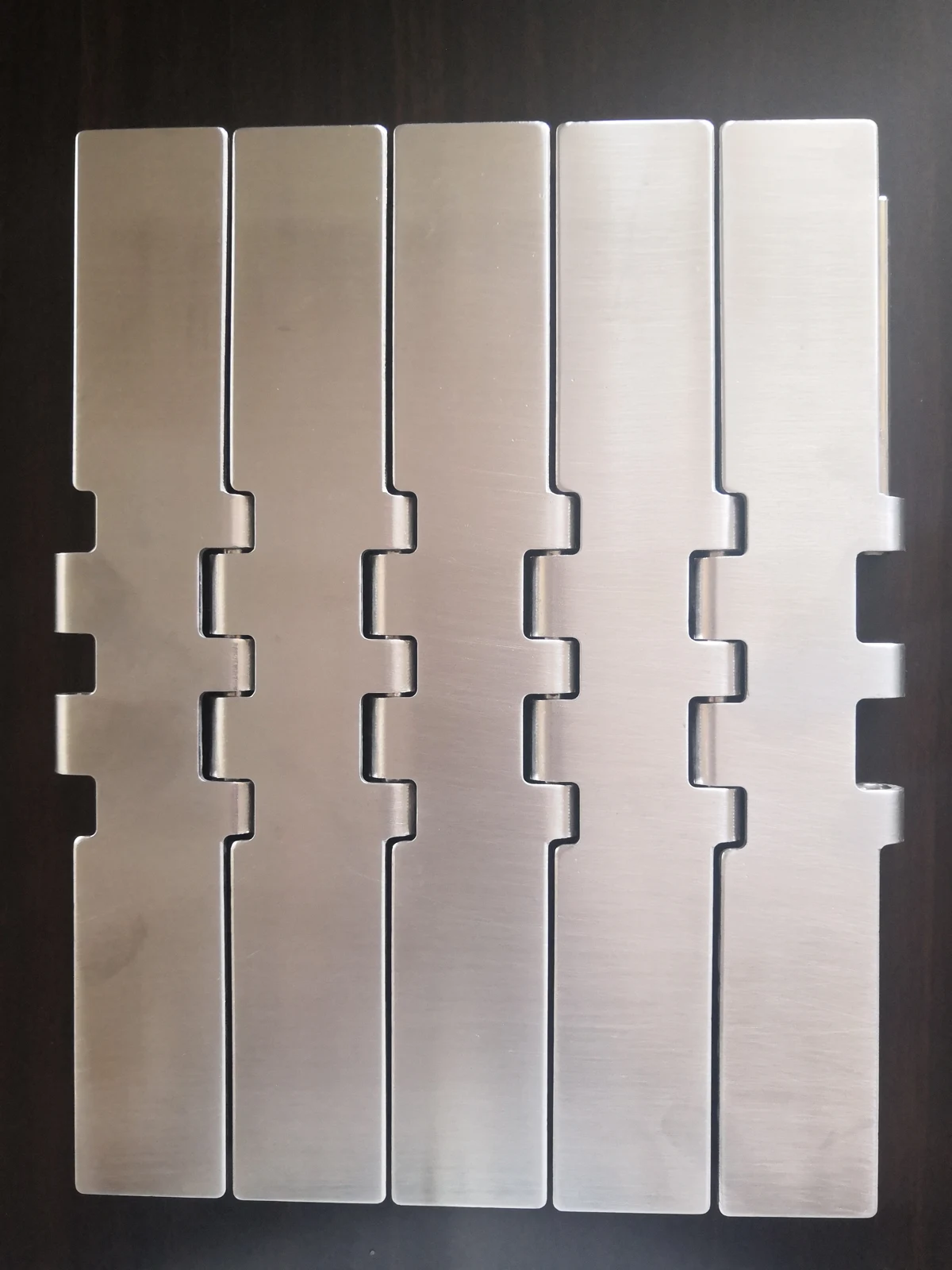

Images show representative product construction. Original factory photographs are included in the gallery. Confirm the selected model and dimensions against the specification.
Request a quotation
Send your drawing or sample details, quantity and required delivery date to [email protected], or call +86 18223208010.
