Chain Driven Belt

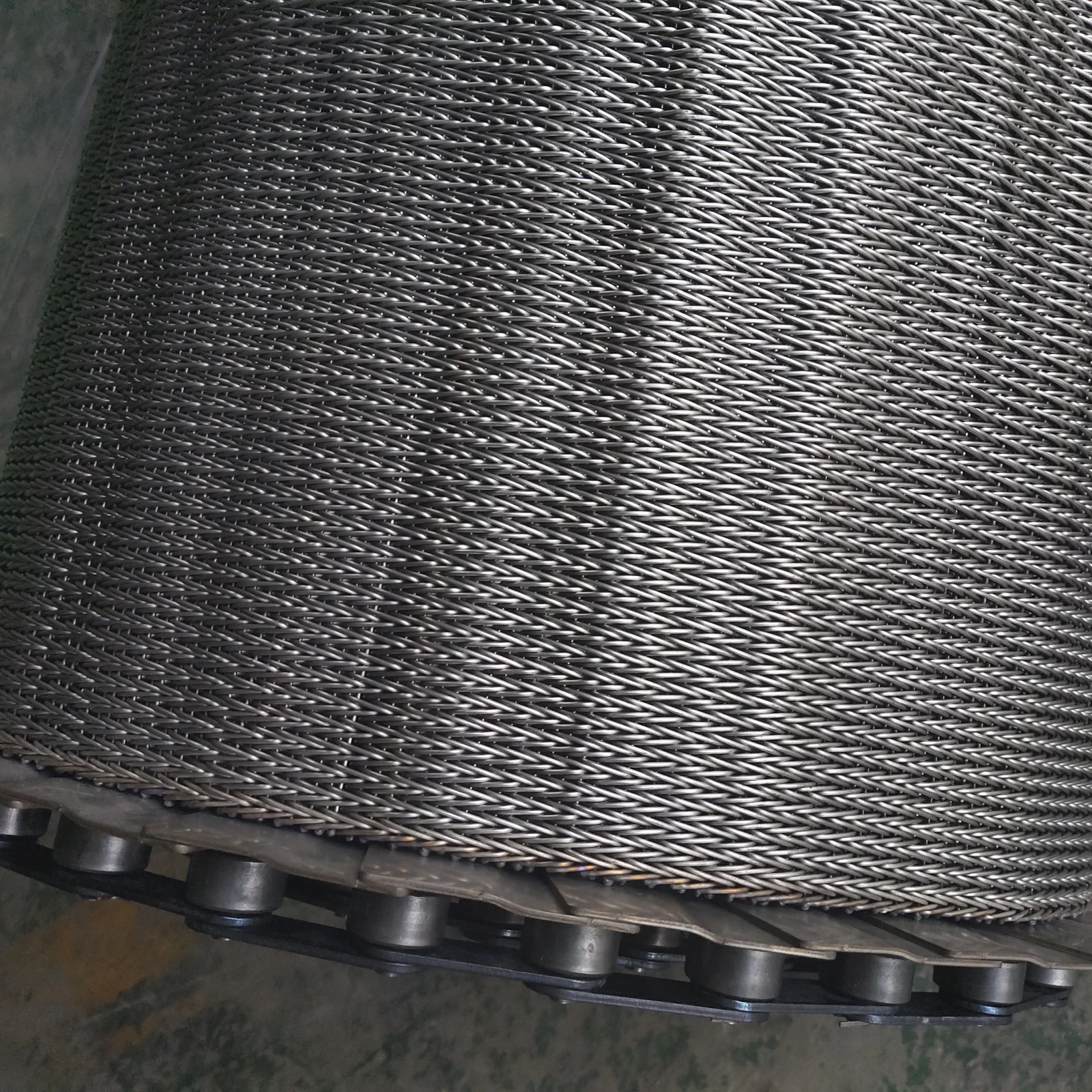

Chain-driven wire mesh combines a woven carrying surface with positive chain drive. Cross rods connect the mesh to the side chains. Mesh density, support rods and edge arrangements are selected for the conveyed product and process.
Made to your specification
Material, dimensions and edge arrangements are confirmed for your application. Share the current part or a drawing for review.
Product overview
Chain-driven wire mesh combines a woven carrying surface with positive chain drive. Cross rods connect the mesh to the side chains. Mesh density, support rods and edge arrangements are selected for the conveyed product and process.
Specifications
| Material | carbon steel,SS201 SS304 SS316 |
|---|---|
| Chain pitch (mm) | 12.7,15.875,19.05,25.4,31.75, 38.1,50.8,63.5,76.2,101.6 |
| Support rod diameter (mm) | 4mm to 16mm |
| Wire diameter (mm) | 1.0,1.2,1.4,1.5,1.6,1.8,2.0,2.5 |
| Spiral pitch (mm) | 2.8 to 40 |
| Rod pitch (mm) | 5-50.8 |
| Belt width (mm) | 100-6000 |
Available combinations depend on the belt or chain configuration. Confirm the material, dimensions, load and operating temperature before ordering.
Images show representative product construction. Original factory photographs are included in the gallery. Confirm the selected model and dimensions against the specification.
Request a quotation
Send your drawing or sample details, quantity and required delivery date to [email protected], or call +86 18223208010.
