Conveyor components.
Find your configuration.
Wire mesh belts, chain plates, roller chains and conveyors. Review the available structures and specifications for your line.
-
Balanced Weave Belt
View specifications →: Balanced Weave BeltBalanced weave belts combine left-hand and right-hand wire spirals connected by rods. Wire diameter, spiral pitch and rod spacing are selected to match product size and the required carrying surface.
-

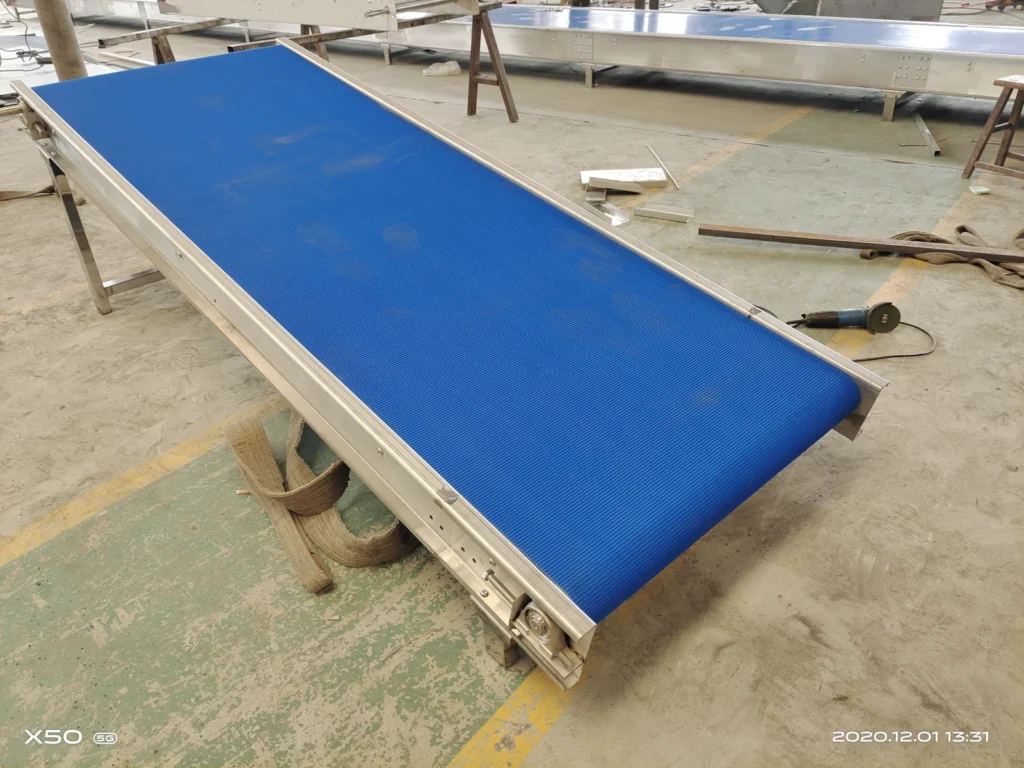

Belt Conveyor
View specifications →: Belt ConveyorA belt conveyor supports the transfer of cartons, light components and suitable bulk materials. Belt material, overall dimensions, speed and drive arrangement are configured for the application.
-
Chaff Cutter Chain Plate
View specifications →: Chaff Cutter Chain PlateChain plate assembly for chaff-cutter feed equipment. Supply a drawing or sample to confirm mounting, plate width and chain dimensions.
-
Chain Driven Belt
View specifications →: Chain Driven BeltChain-driven wire mesh combines a woven carrying surface with positive chain drive. Cross rods connect the mesh to the side chains. Mesh density, support rods and edge arrangements are selected for the conveyed product and process.
-
Chain Plate Belt
View specifications →: Chain Plate BeltHinged metal plates create a continuous carrying surface for medium and heavy-duty conveying. Solid and perforated plate options, side guards and transverse flights can be discussed for the application.
-

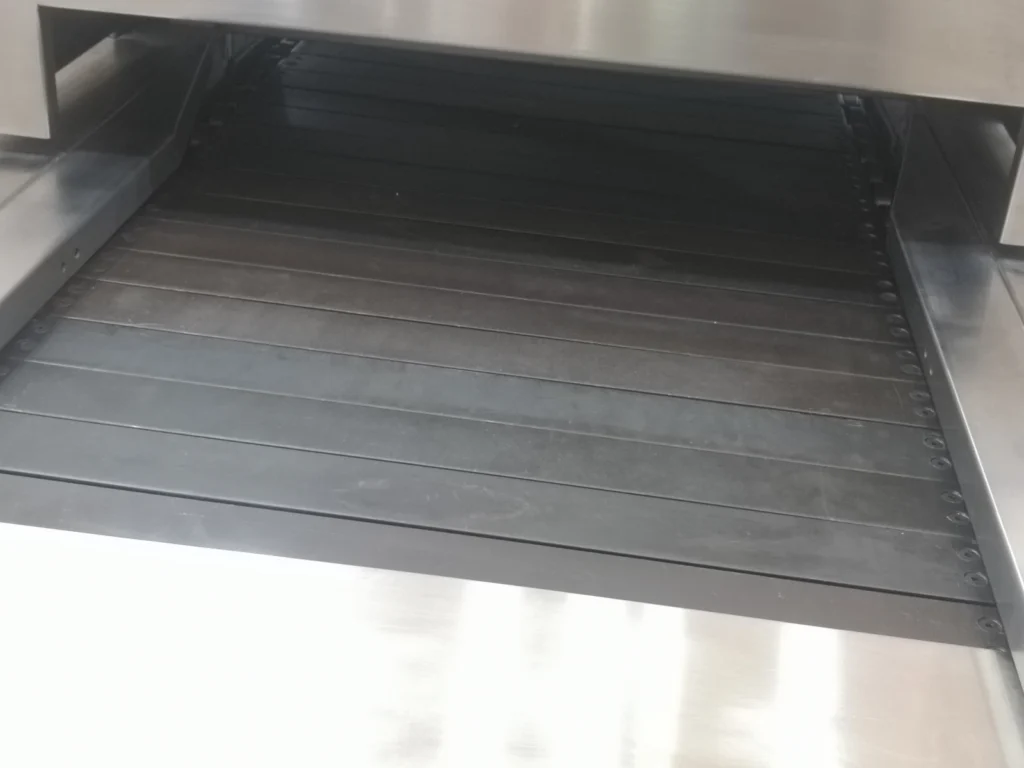

Chain Plate Conveyor
View specifications →: Chain Plate ConveyorA chain plate conveyor provides a supported metal carrying surface for industrial components and materials. Layout, overall dimensions, speed and drive power are configured for the project.
-

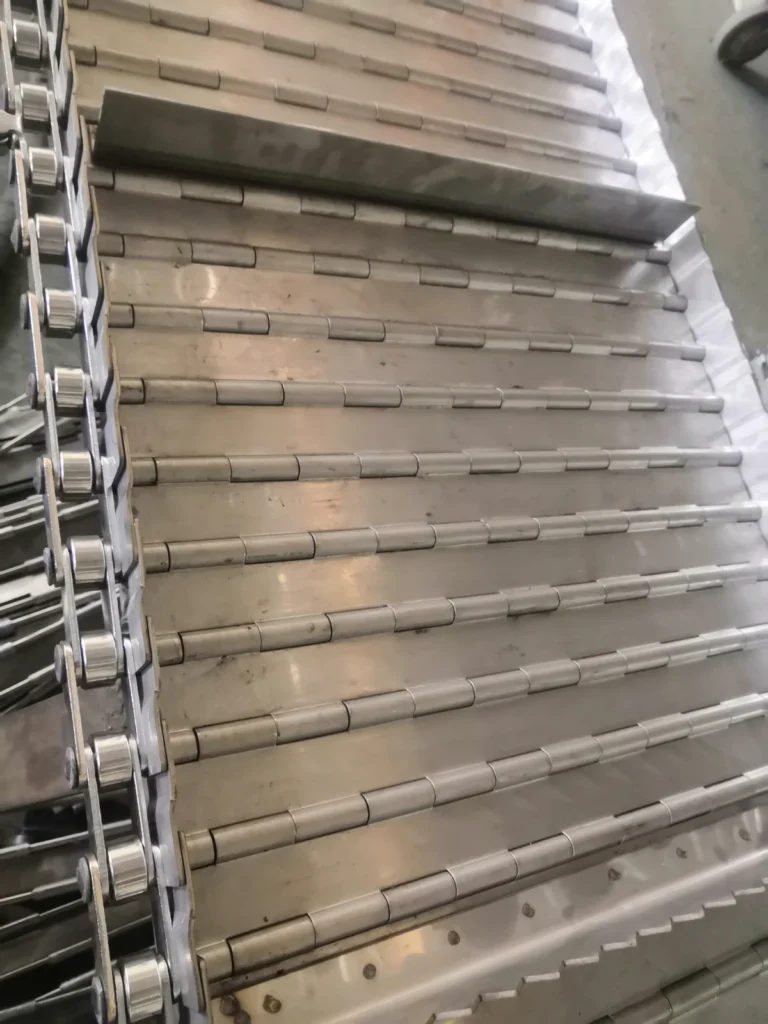

Chip Conveyor Hinge Belt
View specifications →: Chip Conveyor Hinge BeltHinged plate belt for chip-conveying equipment. Match the belt width, pitch, side plates and installation dimensions to the existing conveyor.
-

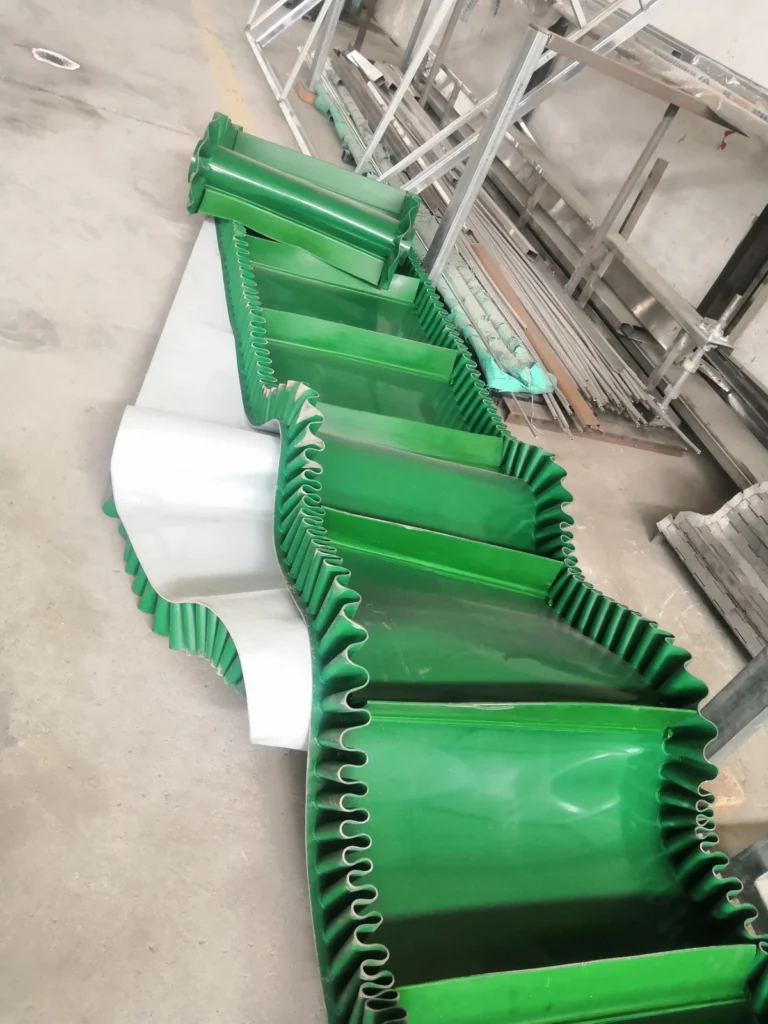

Cleated Conveyor Belt
View specifications →: Cleated Conveyor BeltConveyor belt with raised cleats for controlled material transfer. Provide belt dimensions, cleat profile and operating conditions for selection.
-
Compound Balanced Belt
View specifications →: Compound Balanced BeltCompound balanced belts use closely arranged wire spirals to form a dense, smooth carrying surface. This construction is suitable for small products such as fasteners, biscuits and granules, subject to application review.
-
Conveyor Sprocket C208B
View specifications →: Conveyor Sprocket C208BThe C208B conveyor sprocket is selected to match the corresponding chain. Tooth count, bore, outside diameter and material can be discussed with a drawing or sample. Final dimensions must be confirmed before manufacture.
-
Conveyor Sprocket C210A
View specifications →: Conveyor Sprocket C210AThe C210A conveyor sprocket is selected to match the corresponding chain. Tooth count, bore, outside diameter and material can be discussed with a drawing or sample. Final dimensions must be confirmed before manufacture.
-
Conveyor Sprocket C216A
View specifications →: Conveyor Sprocket C216AThe C216A conveyor sprocket is selected to match the corresponding chain. Tooth count, bore, outside diameter and material can be discussed with a drawing or sample. Final dimensions must be confirmed before manufacture.
-

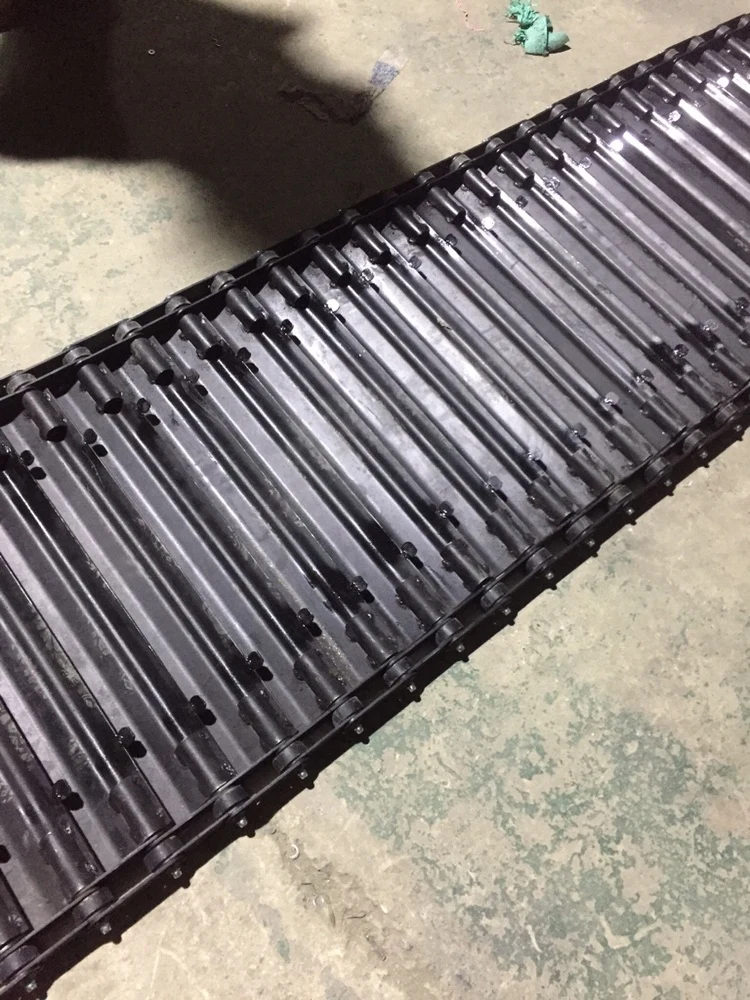

Cranked Hinge Plate Belt
View specifications →: Cranked Hinge Plate BeltFormed hinge plate belt for industrial conveying. Plate profile, pitch, belt width and side arrangements are confirmed from the application or drawing.
-
Curved Chain Plate Conveyor
View specifications →: Curved Chain Plate ConveyorCurved plate conveyor for direction changes in a production line. Plate construction, turning radius, conveyor height and drive arrangement are confirmed to order.
-
Curved Flat Flex Belt
View specifications →: Curved Flat Flex BeltCurved flat flex wire belt for turning conveyor sections. Provide inner radius, belt width, wire diameter and pitch for matching.
-
Curved Mesh Belt Conveyor
View specifications →: Curved Mesh Belt ConveyorCurved wire mesh conveyor for changing the direction of product transfer. Turning angle, belt width, radius and transfer height are configured for the line.
Built around your process.
Share your drawing, dimensions and working conditions. We will review the details with you.
