CONVEYOR COMPONENTS & SYSTEMS

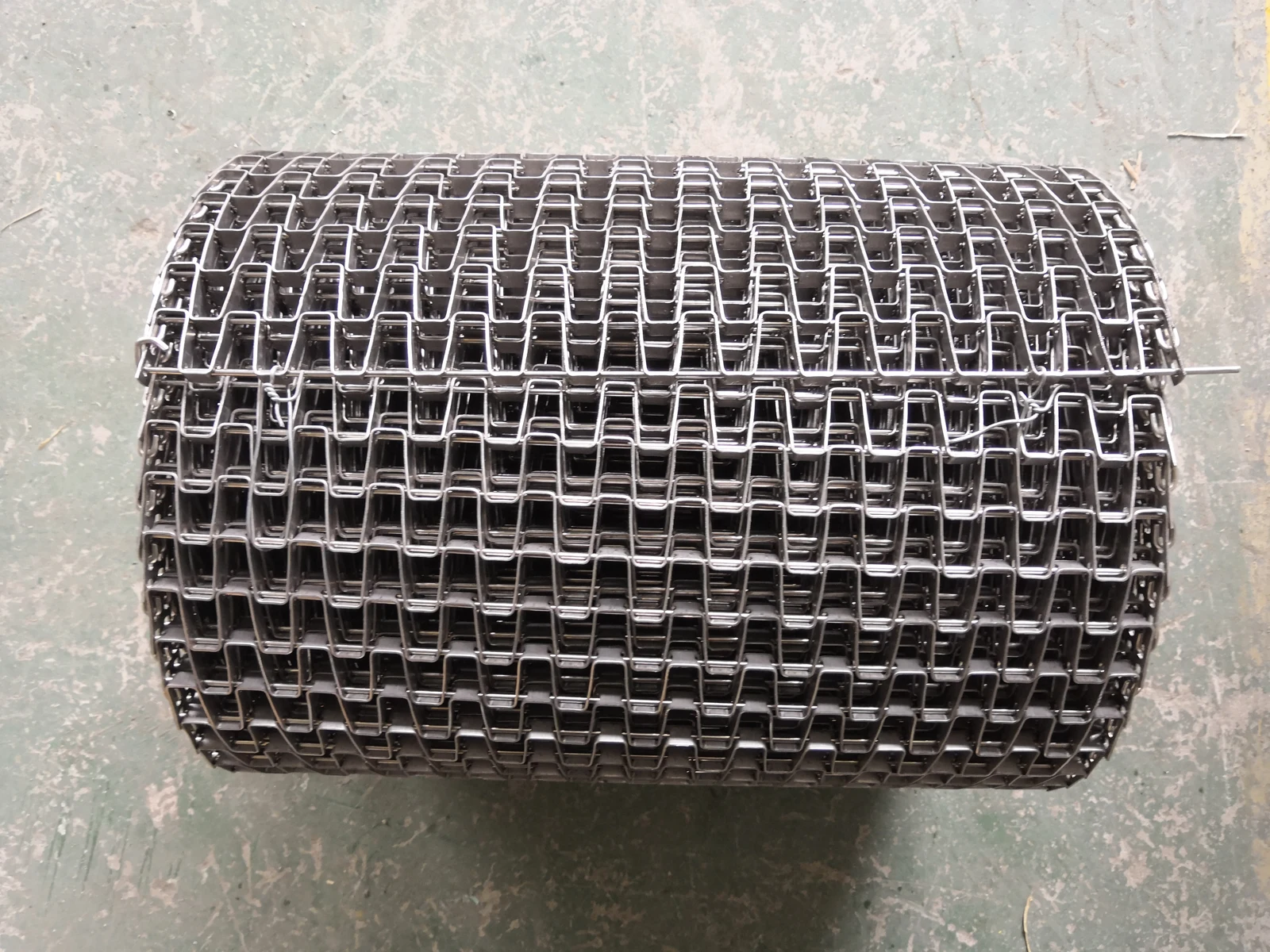

Flat Wire Mesh Belt

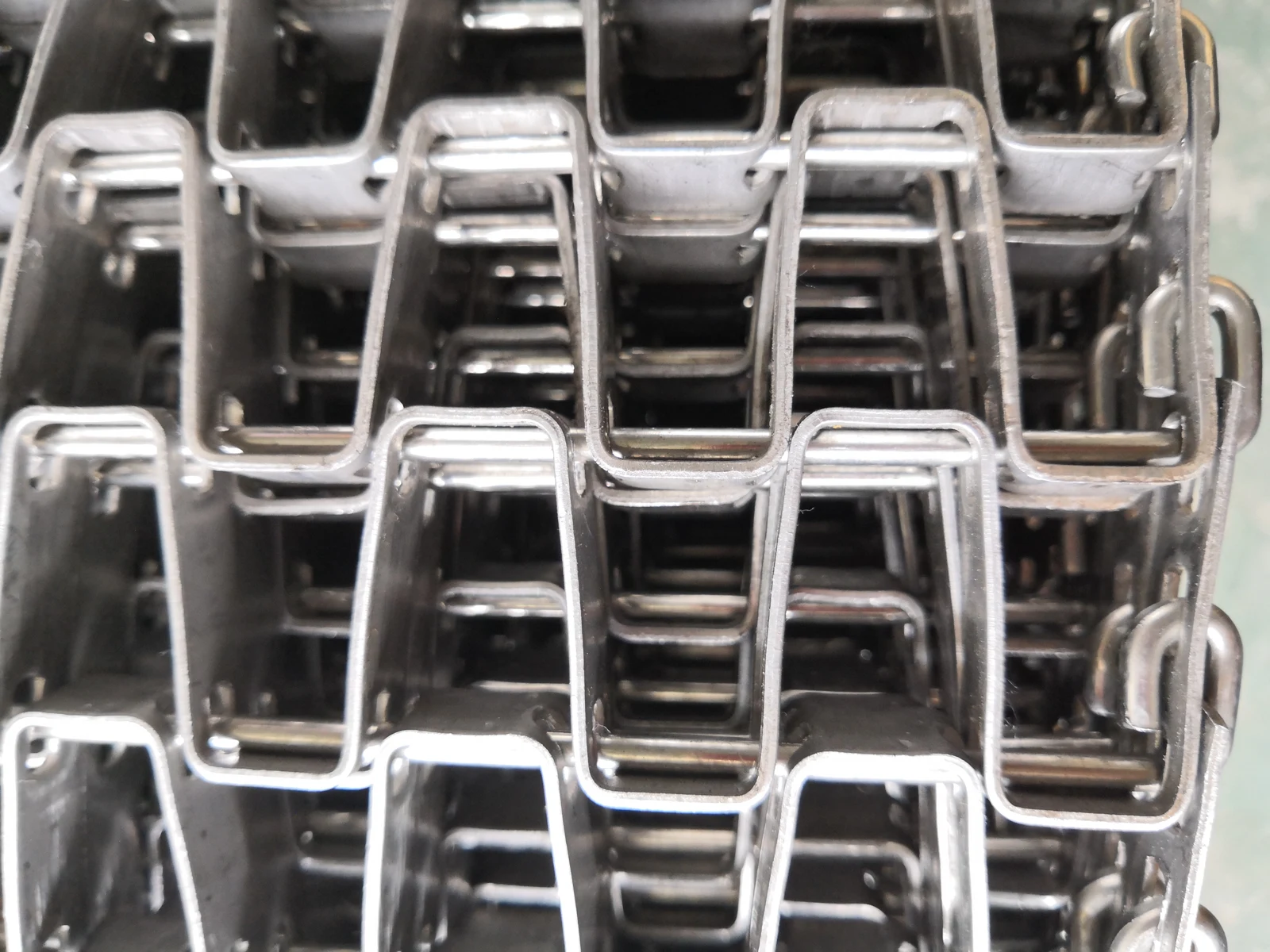

Flat wire mesh belts combine formed flat strips and cross rods. Their open structure can support cooling, drying, washing and sorting applications. Edge and flight arrangements are available for discussion.
Made to your specification
Material, dimensions and edge arrangements are confirmed for your application. Share the current part or a drawing for review.
Product overview
Flat wire mesh belts combine formed flat strips and cross rods. Their open structure can support cooling, drying, washing and sorting applications. Edge and flight arrangements are available for discussion.
Specifications
| Material | Stainless steel SS201 SS304 SS316 |
|---|---|
| Spiral pitch (mm) | 12.7-40 |
| Rod pitch (mm) | 12.7 25.4 38.1 50.8 |
| Plate thickness (mm) | 1.2 1.6 2 |
| Rod diameter (mm) | 3 to 12 |
| Belt width (mm) | 100-4000 |
Available combinations depend on the belt or chain configuration. Confirm the material, dimensions, load and operating temperature before ordering.
Request a quotation
Send your drawing or sample details, quantity and required delivery date to [email protected], or call +86 18223208010.
